Cédula 40
The Schedule 40 (SCH40) PVC pipe and fitting product line is designed for pressurized water transport and is joined using solvent cement. The range includes pipes in sizes from 1/2″ to 6″ in diameter and solvent-weld fittings from 1/2″ to 4″; both pipes and fittings are white. This product line is widely used for cold potable water piping in residential and semi-industrial applications, as well as in treatment plants and cooling towers.
By using these files, or the designs made by the files, Wavin shall not be liable for any direct or indirect losses, expenses, costs, or damage of any nature arising out of or resulting from the use of the files.
To download the libraries, you must be registered on our portal.
Not registered yet? Sign up here!

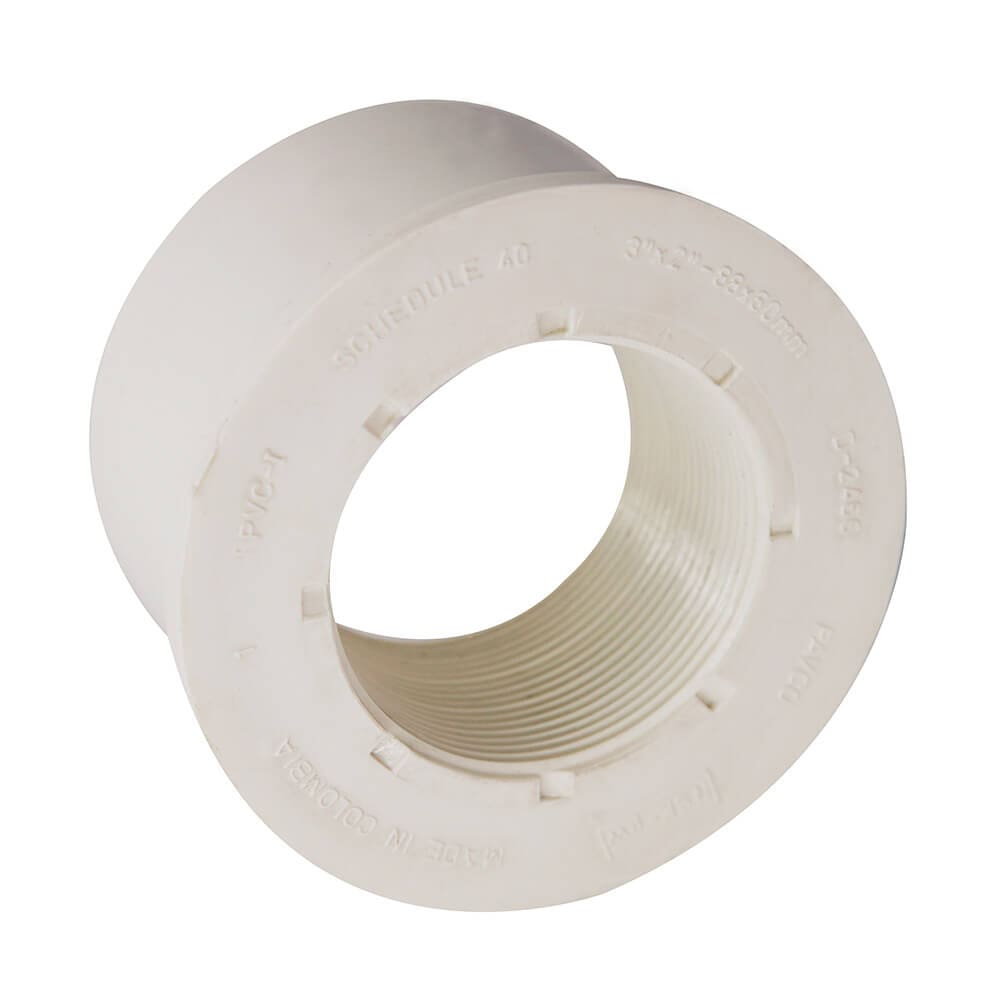

Bushing

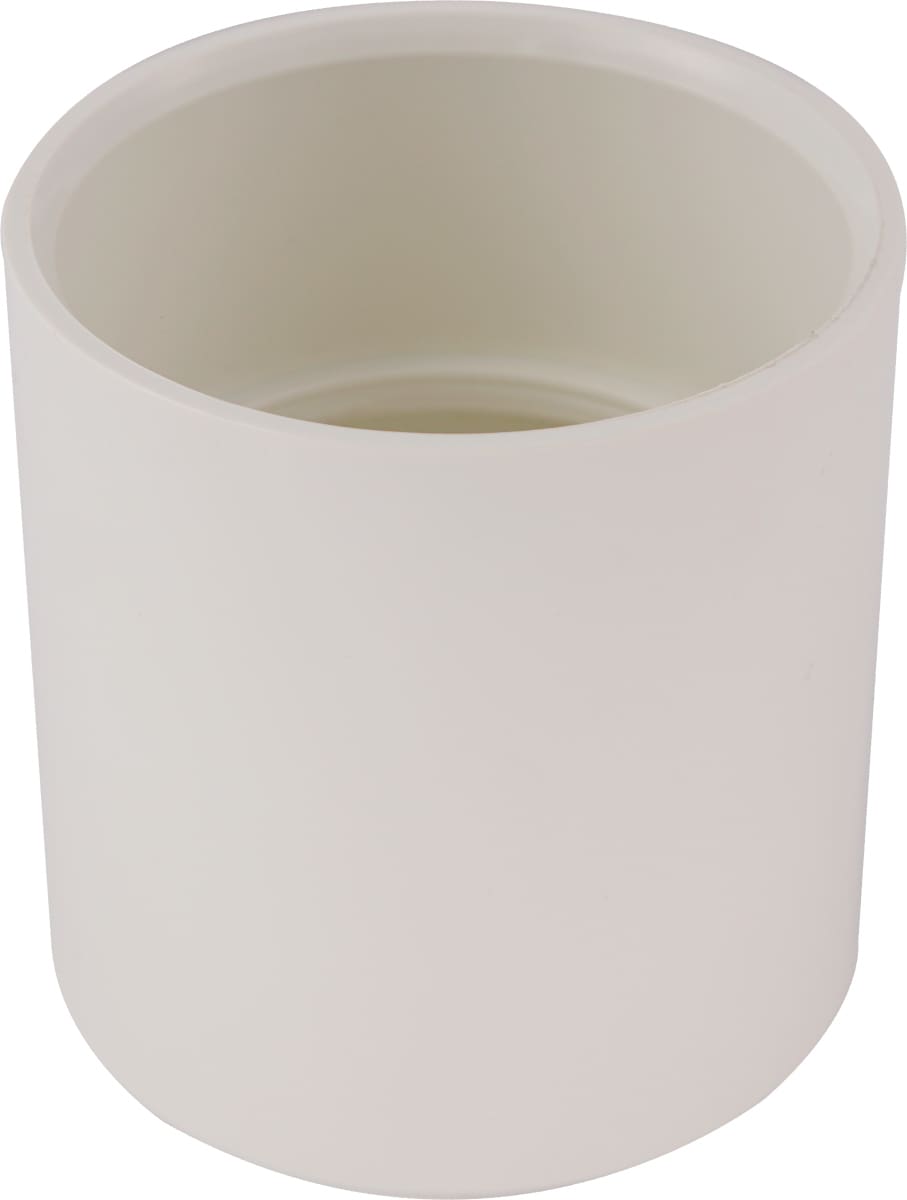

Coupling

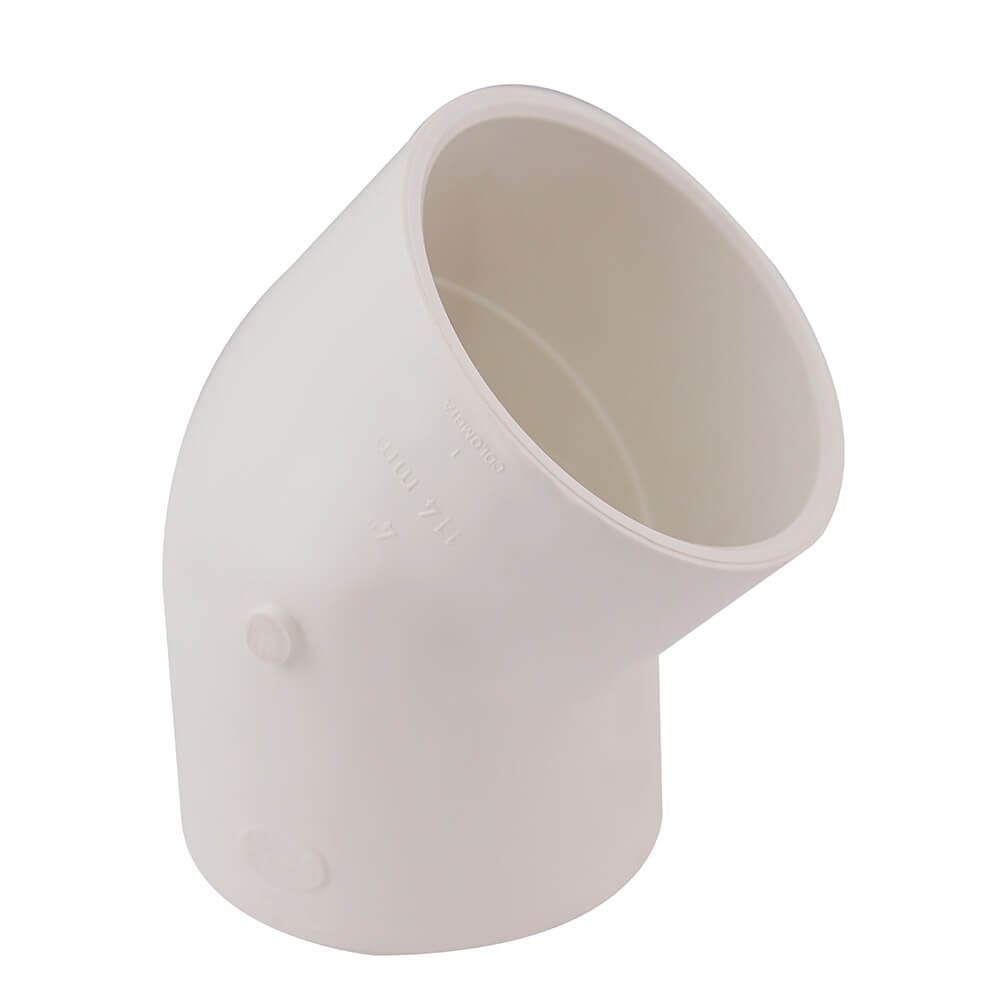

Elbow 45°

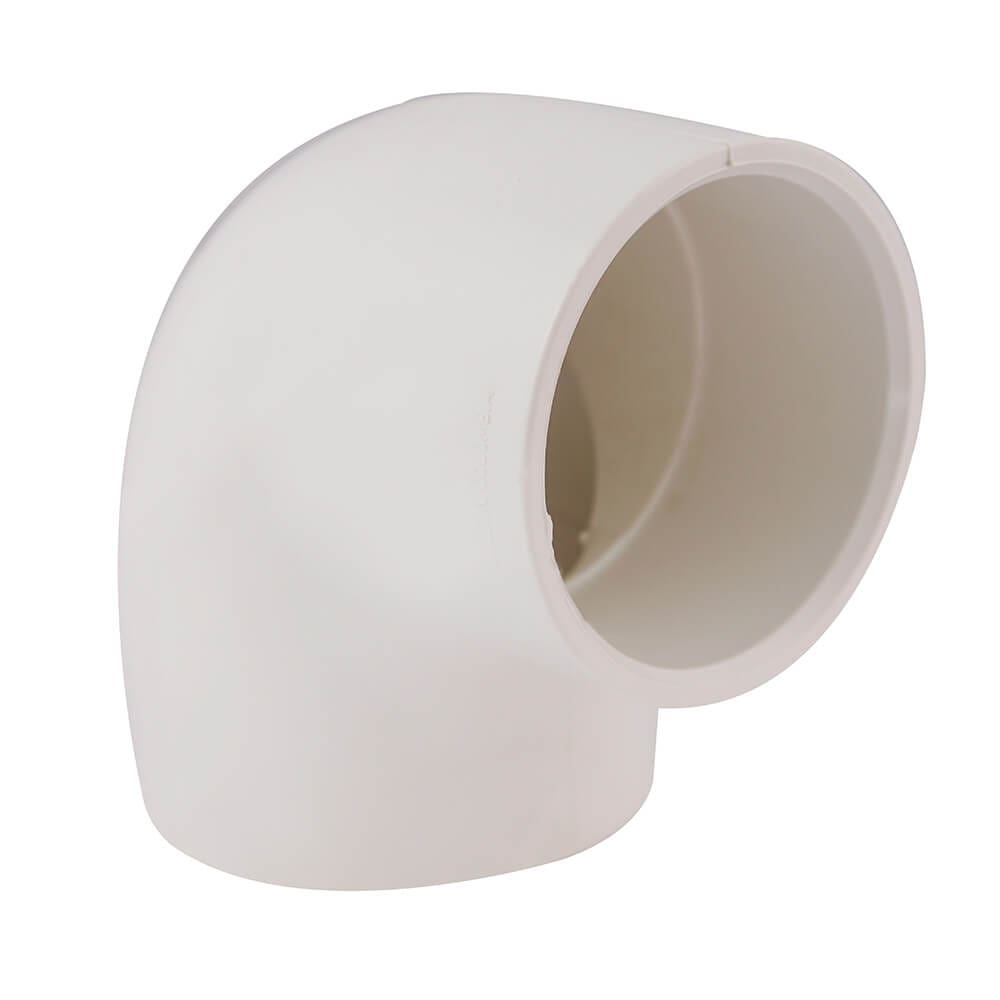

Elbow 90°

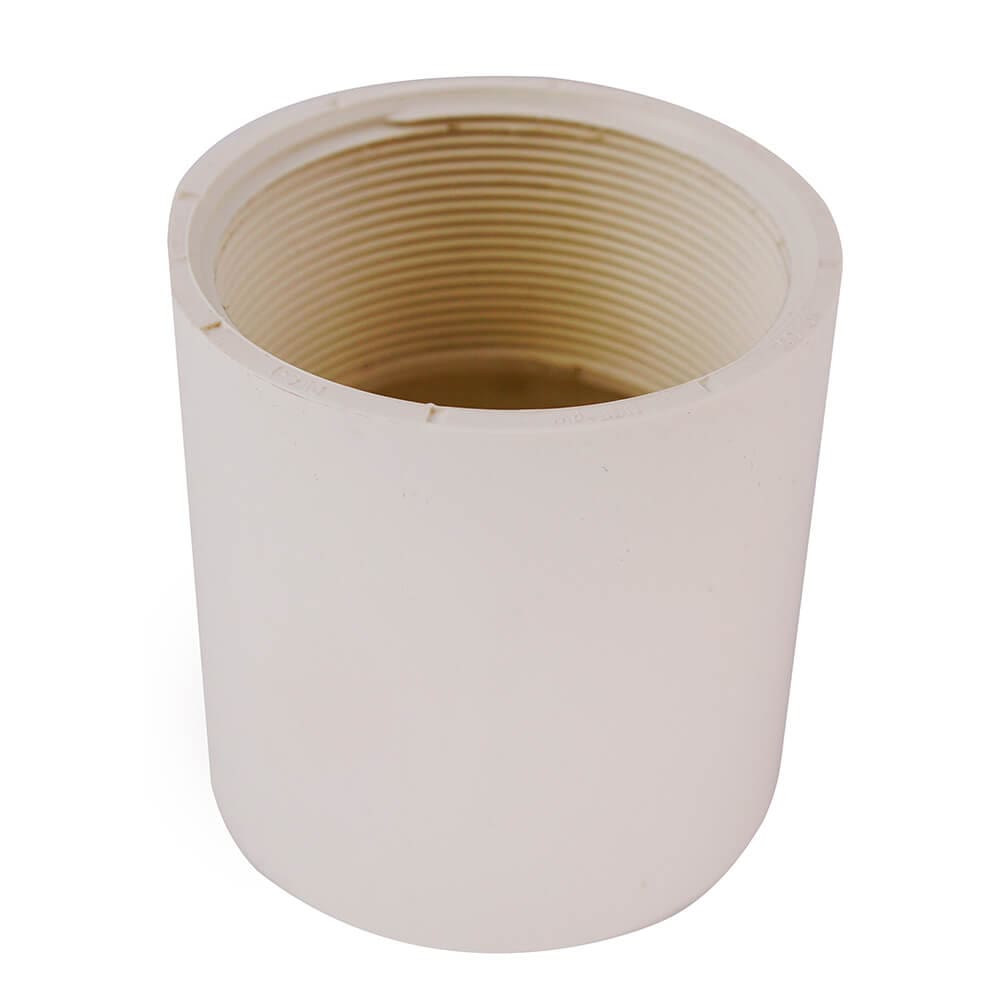

Female Adapter

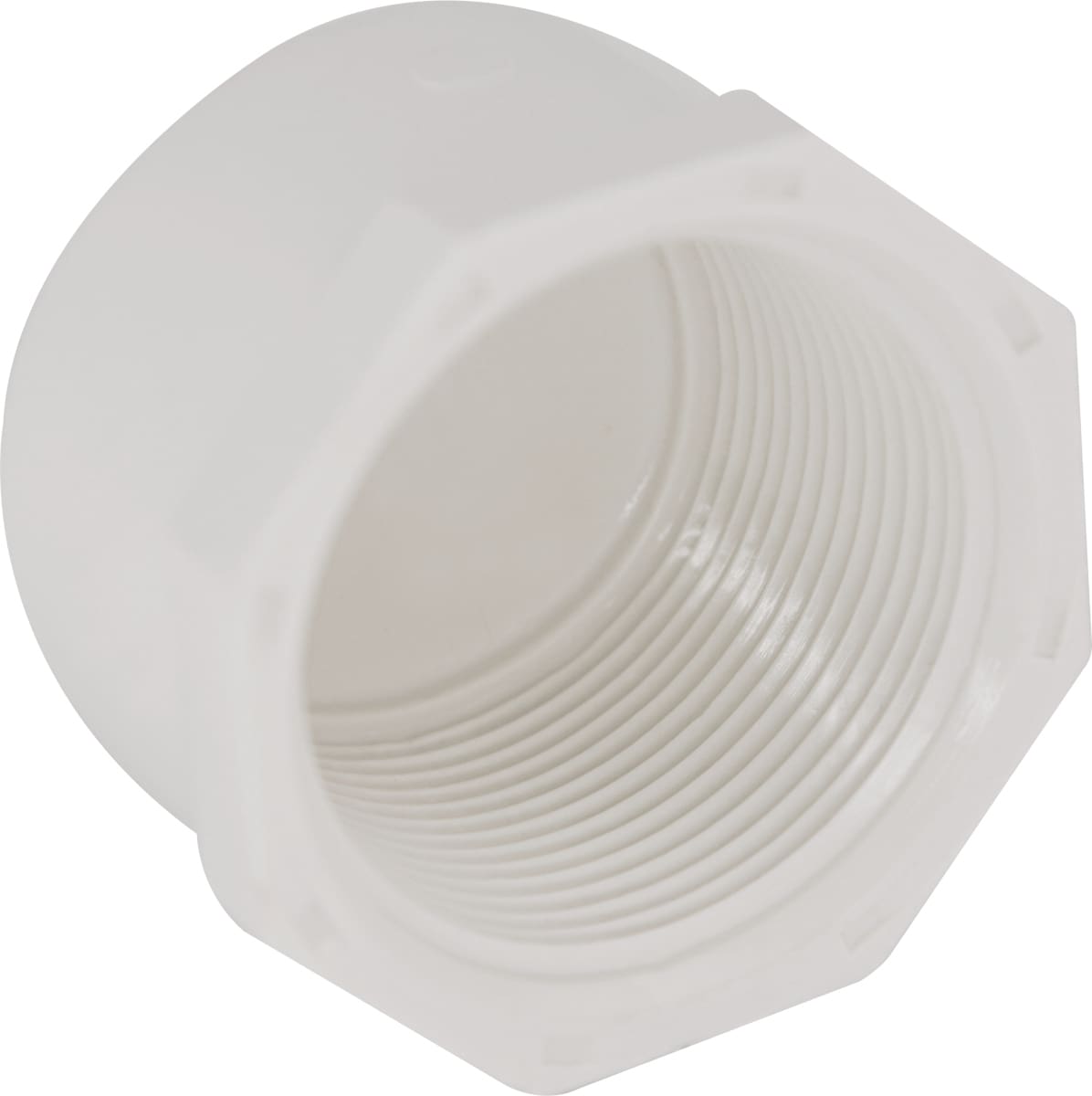

Female Plug

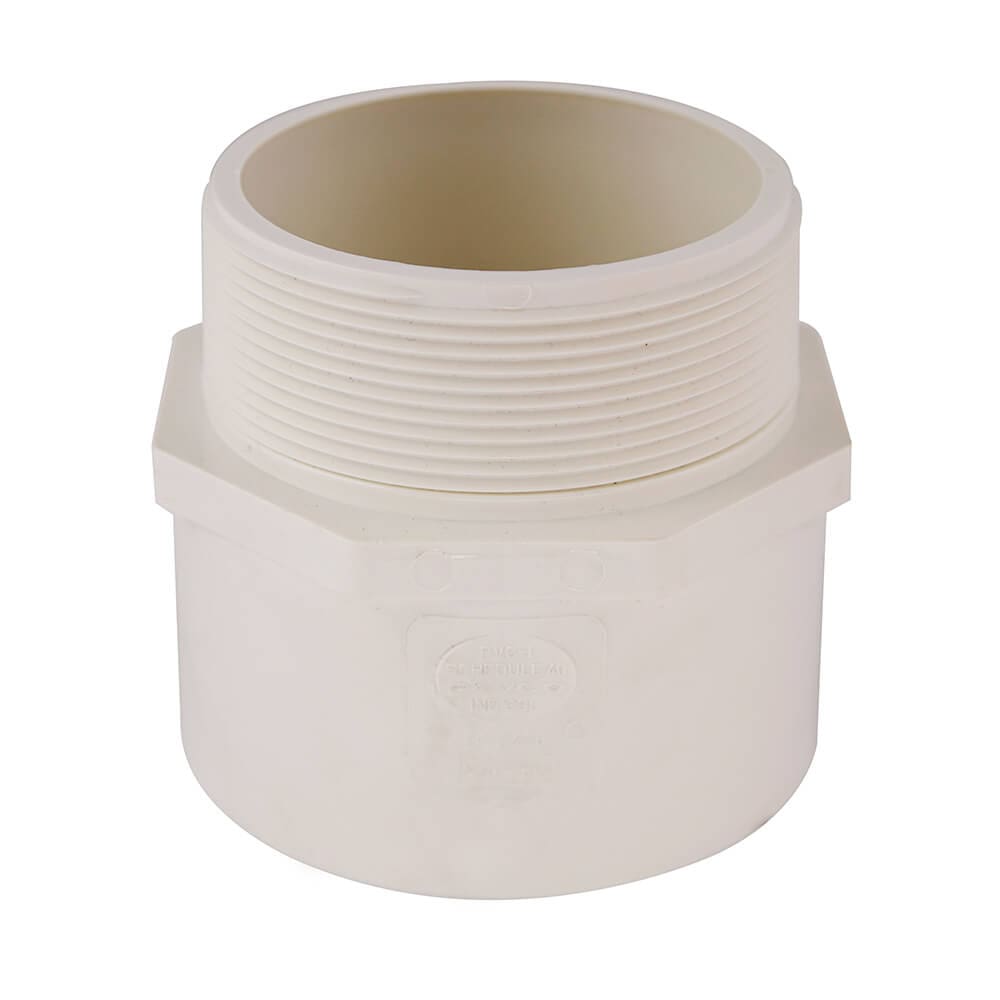

Male Adapter

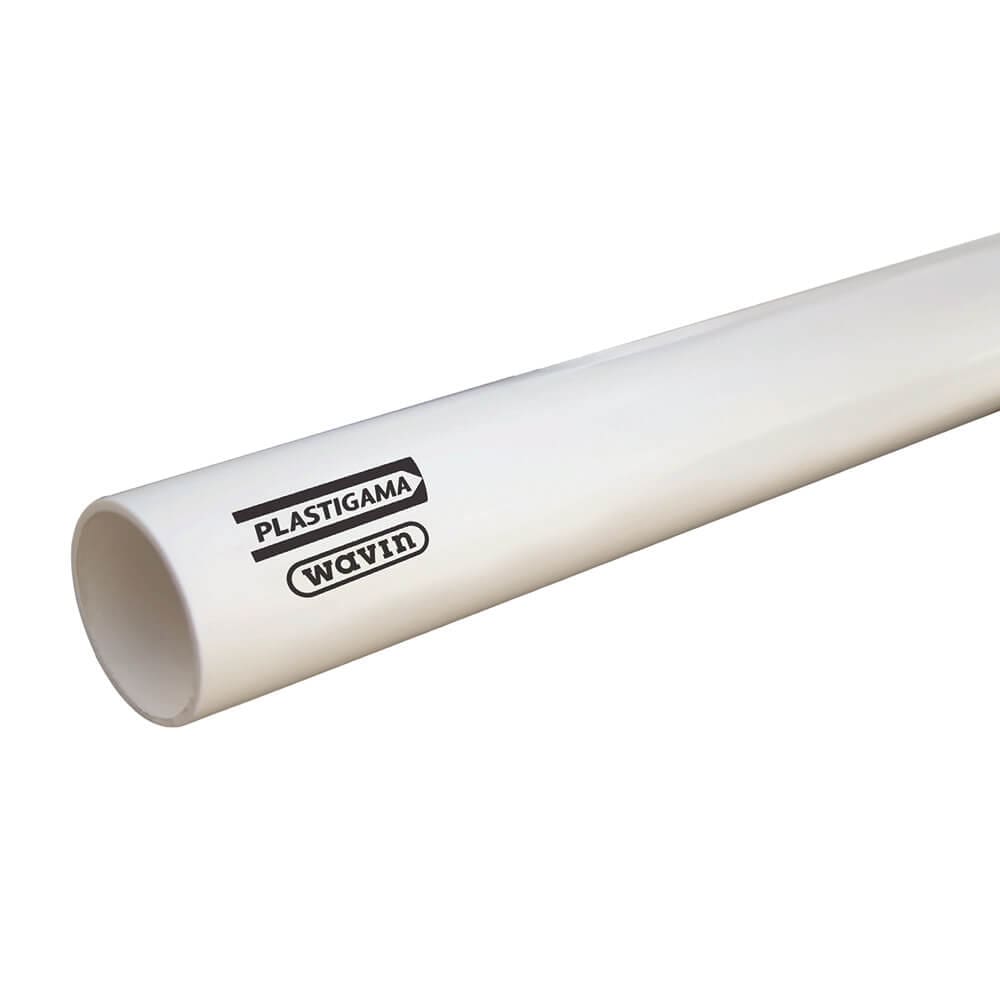

Pipe

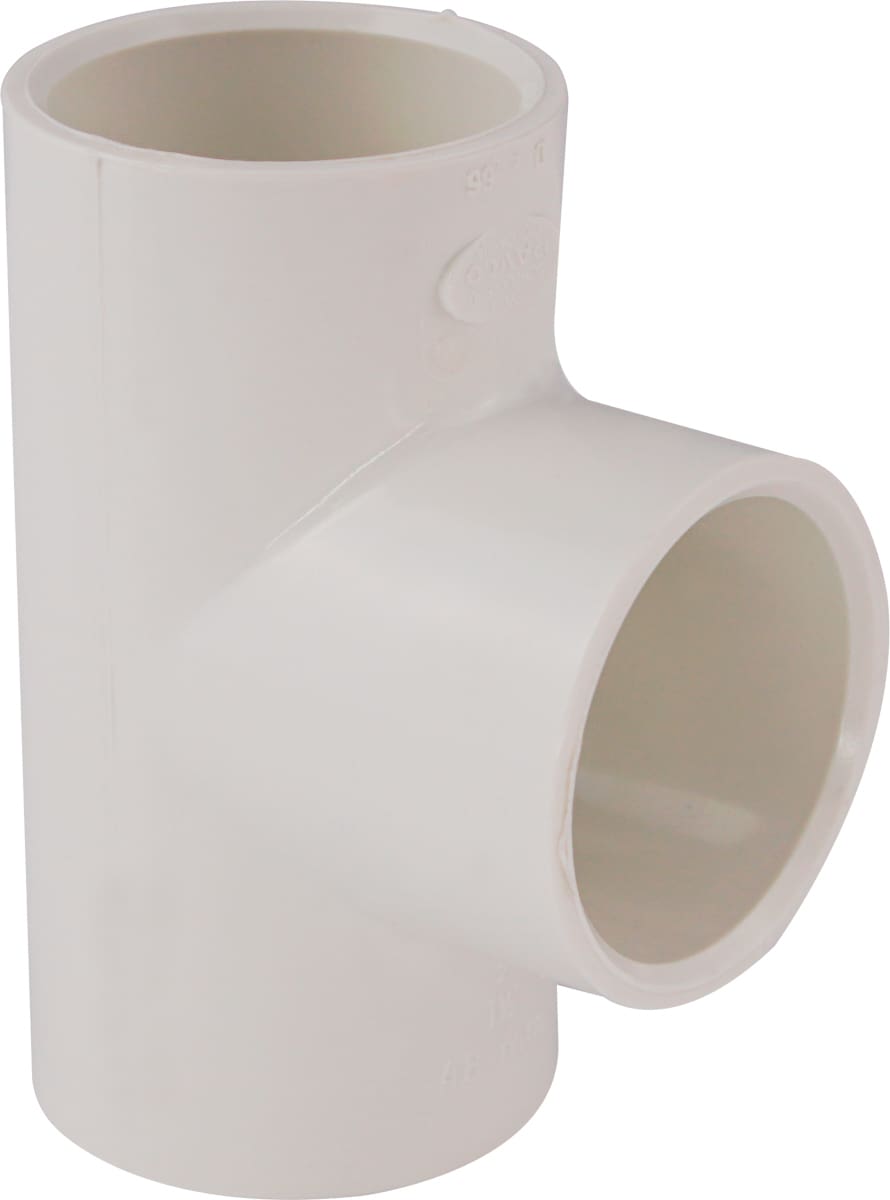

Tee

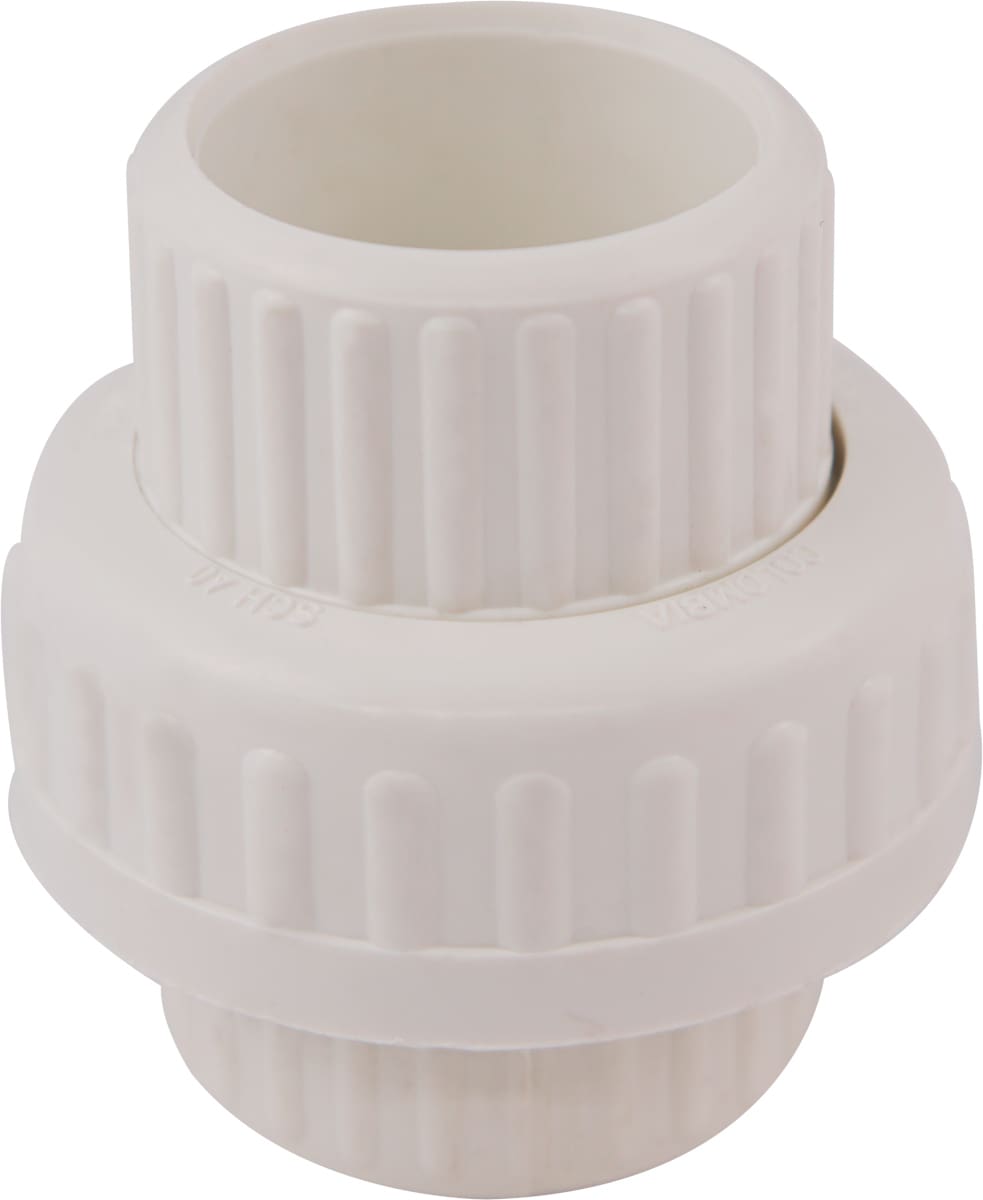

Union
